Quick start guide

From box to first output, in four steps

The same guide that ships in the box. Nothing here needs a software licence, a programming cable or a site visit — a browser and a screwdriver do it.

01Unpacking

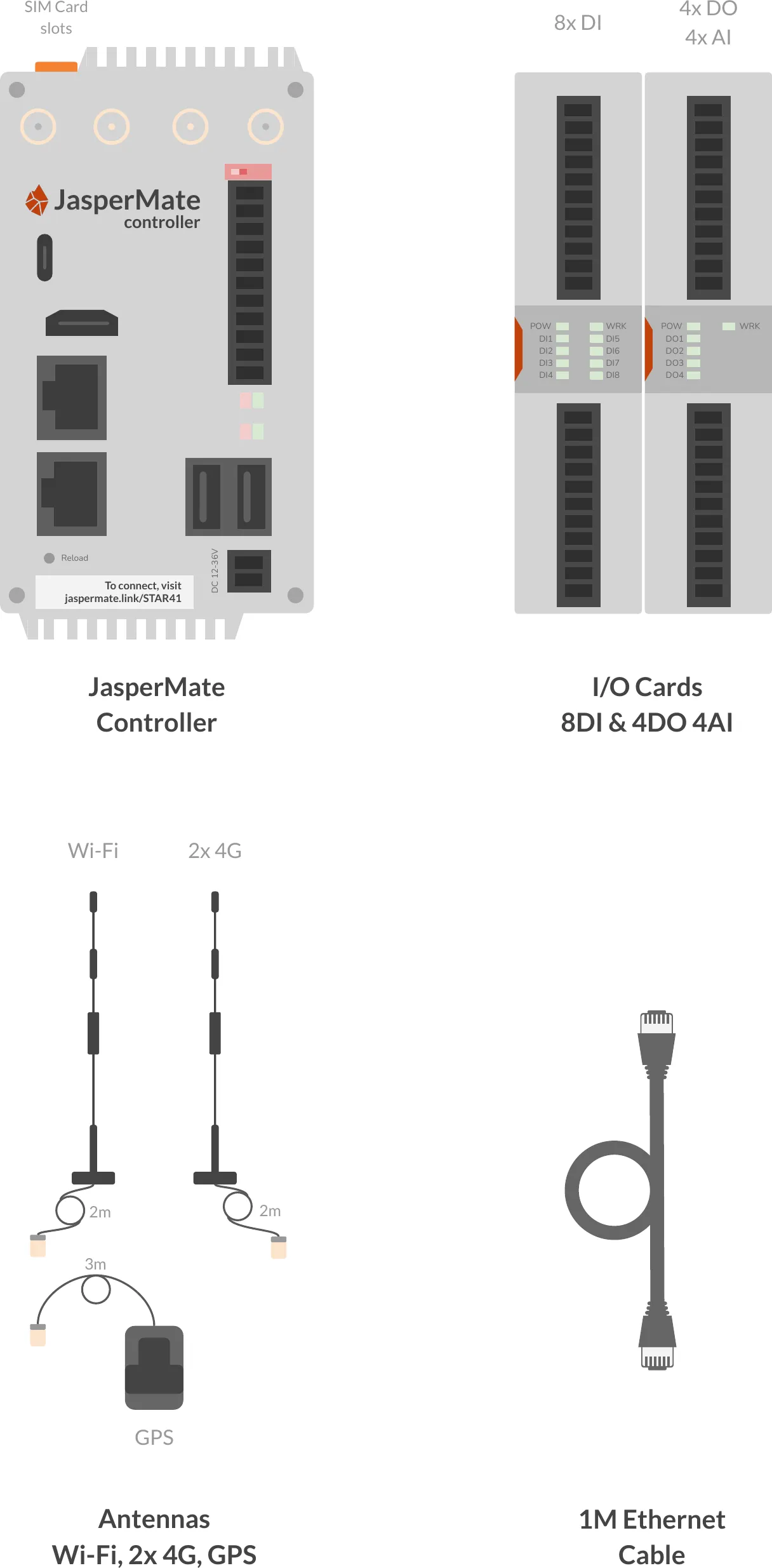

In the box

Click a figure to enlarge

02Step 1 of 4

Put together and power up JasperMate

Click a figure to enlarge

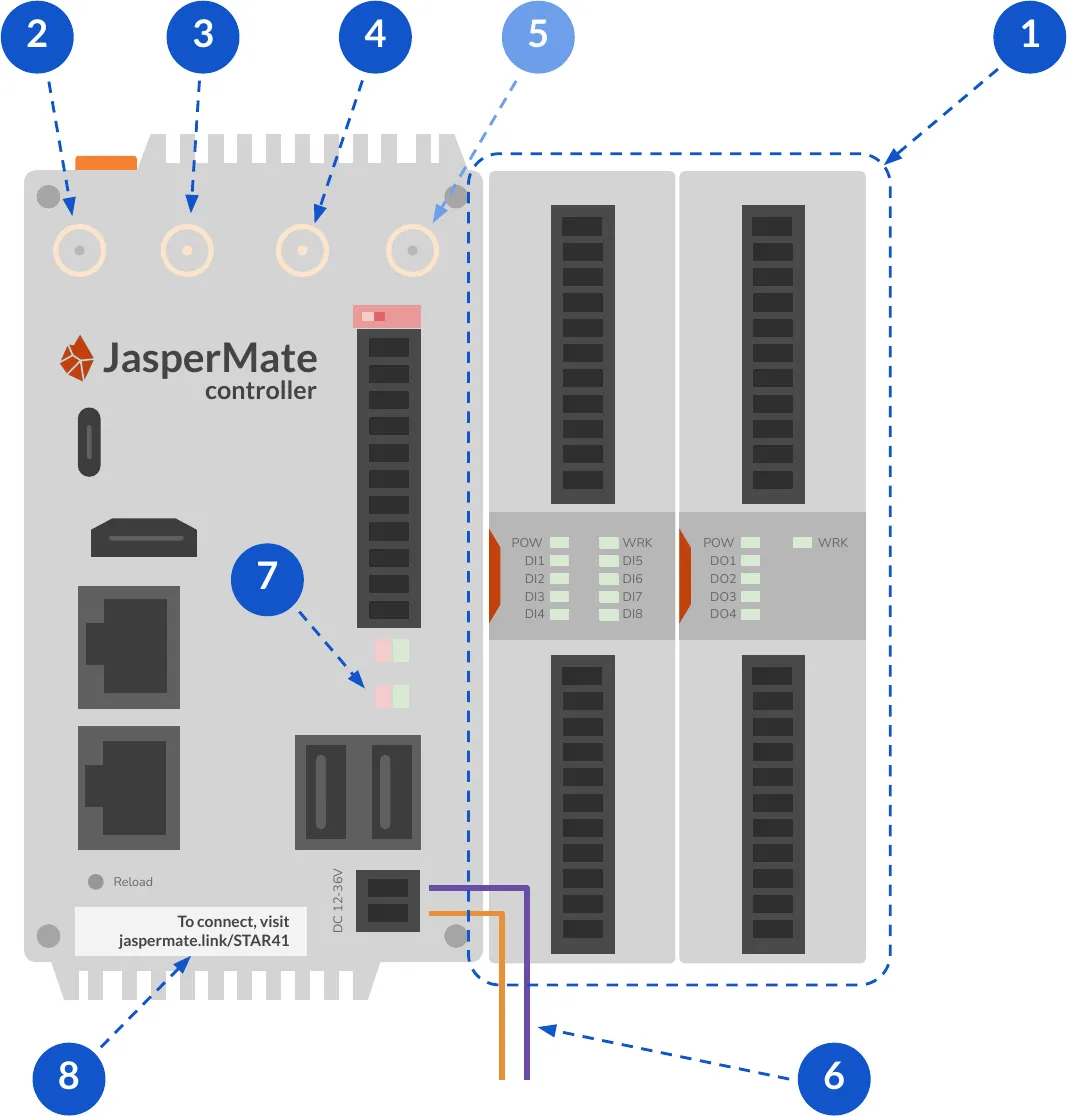

1. 01Slide the I/O cards onto the base unit, ensuring the I/O contacts are securely connected.
2. 02Attach the Wi-Fi antenna (female connector).
3. 03Attach the 4G antenna to ANT1 (male connector).
4. 04Attach the second 4G antenna to ANT2 (male connector).
5. 05Connect the GPS antenna (optional).
6. 06Connect the 12-36V DC power supply.
7. 07Ensure the red PW LED is on and the green WK LED is blinking.
8. 08Open a web browser and visit the setup page printed on the front label — it looks like jaspermate.link/STAR41.

03Step 2 of 4

Connect JasperMate to Wi-Fi

Click a figure to enlarge

1. 01Move JasperMate near your Wi-Fi, or turn on the Personal Hotspot on your phone.

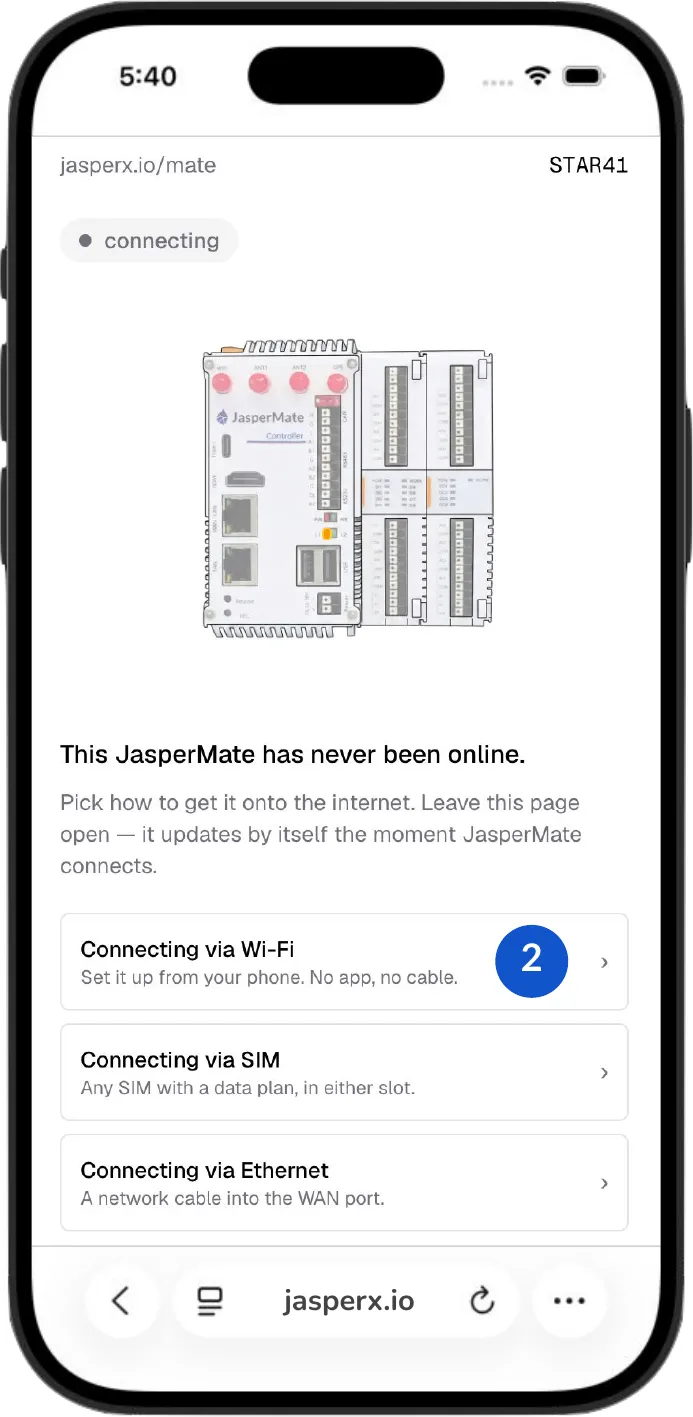

2. 02Follow the steps on the Mate's web page to connect JasperMate to your Wi-Fi.
3. 03Wait until JasperMate is connected to the network: LED L1 goes off and LED L2 blinks.

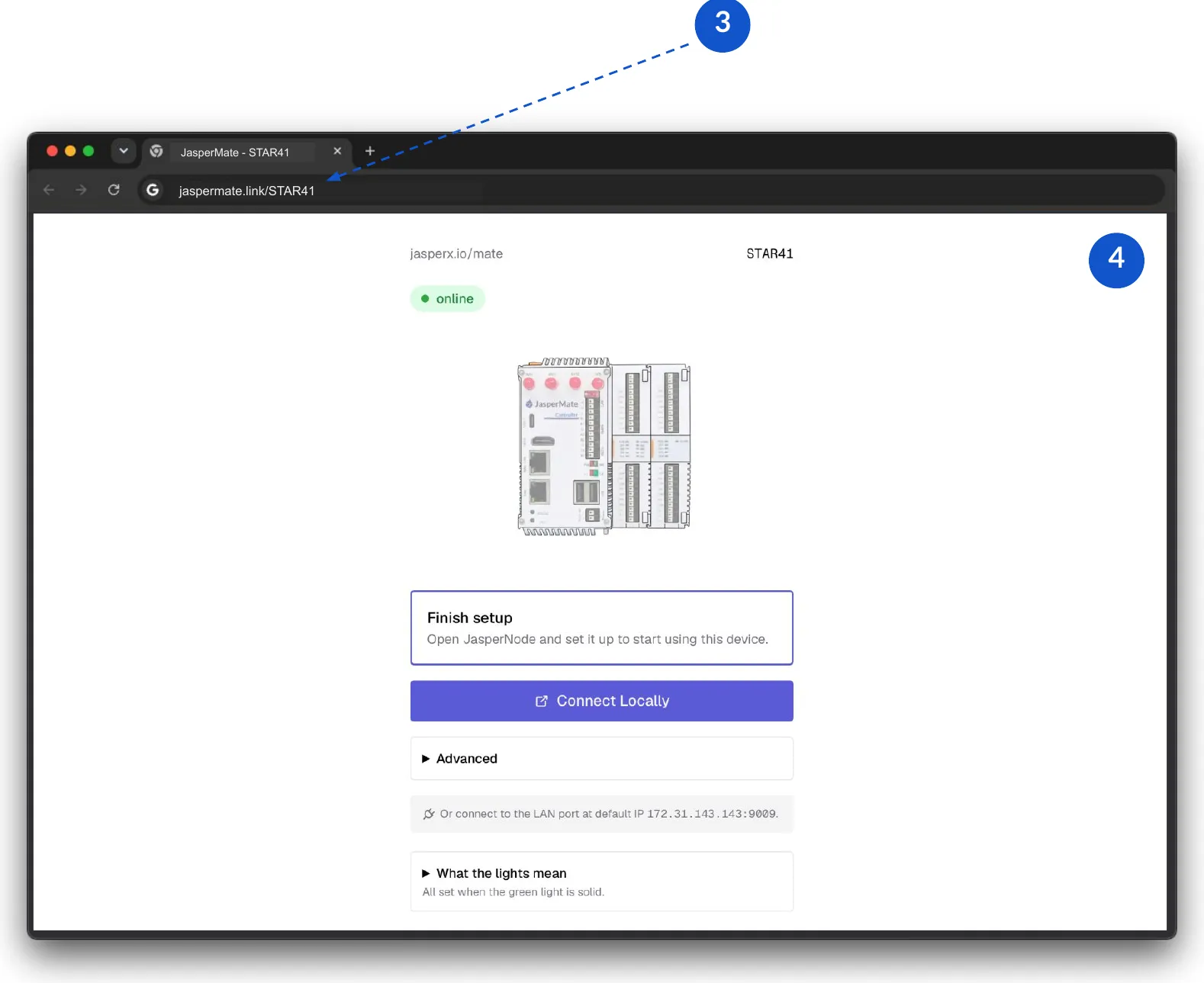

4. 04On your phone or a computer, open the setup link jaspermate.link/<jaspermate-id> again.
5. 05Click "Connect Locally".

04Step 3 of 4

Log in and set up your project

Click a figure to enlarge

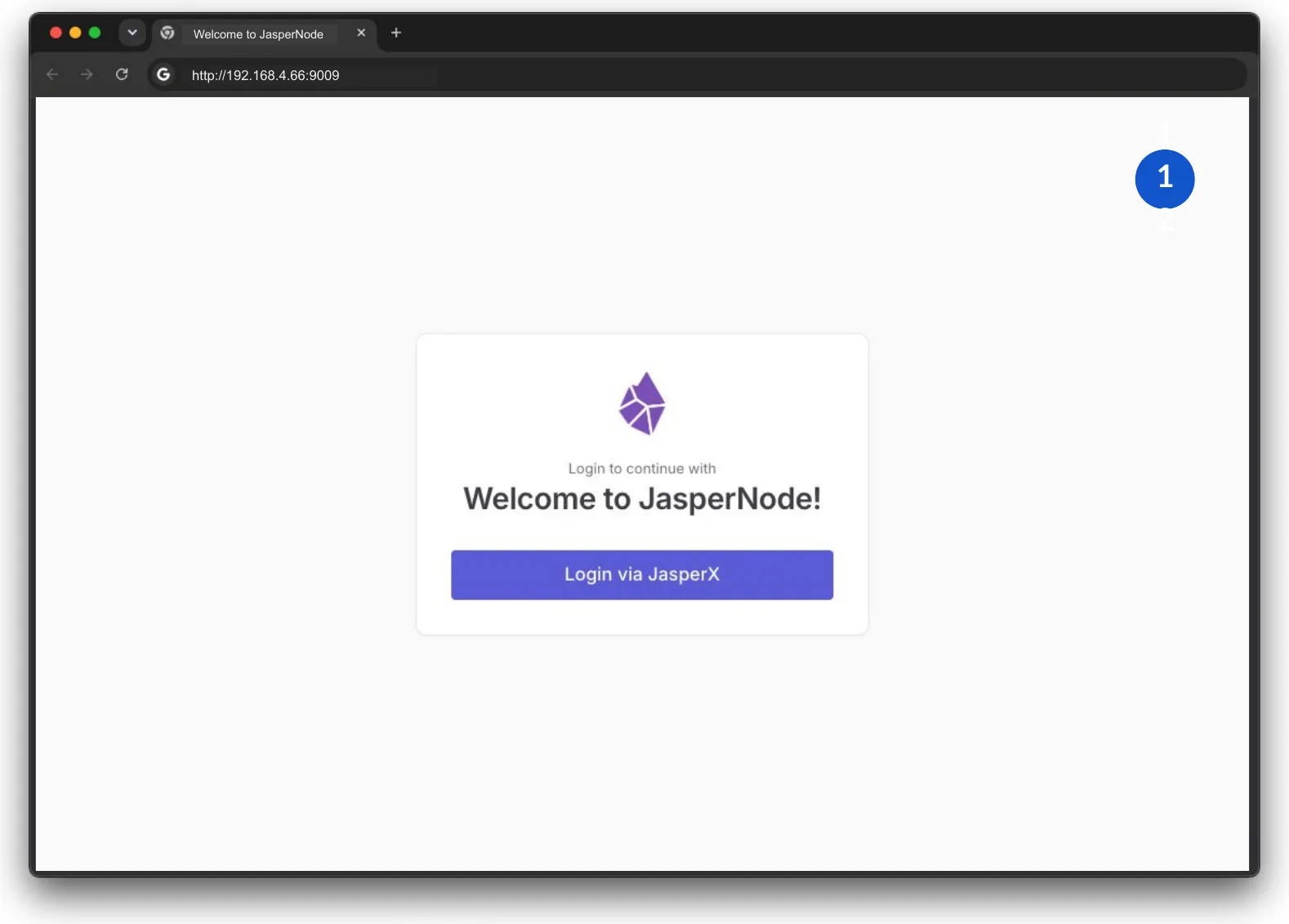

1. 01Log in with your JasperX account. You may need to create an account if you don't already have one.

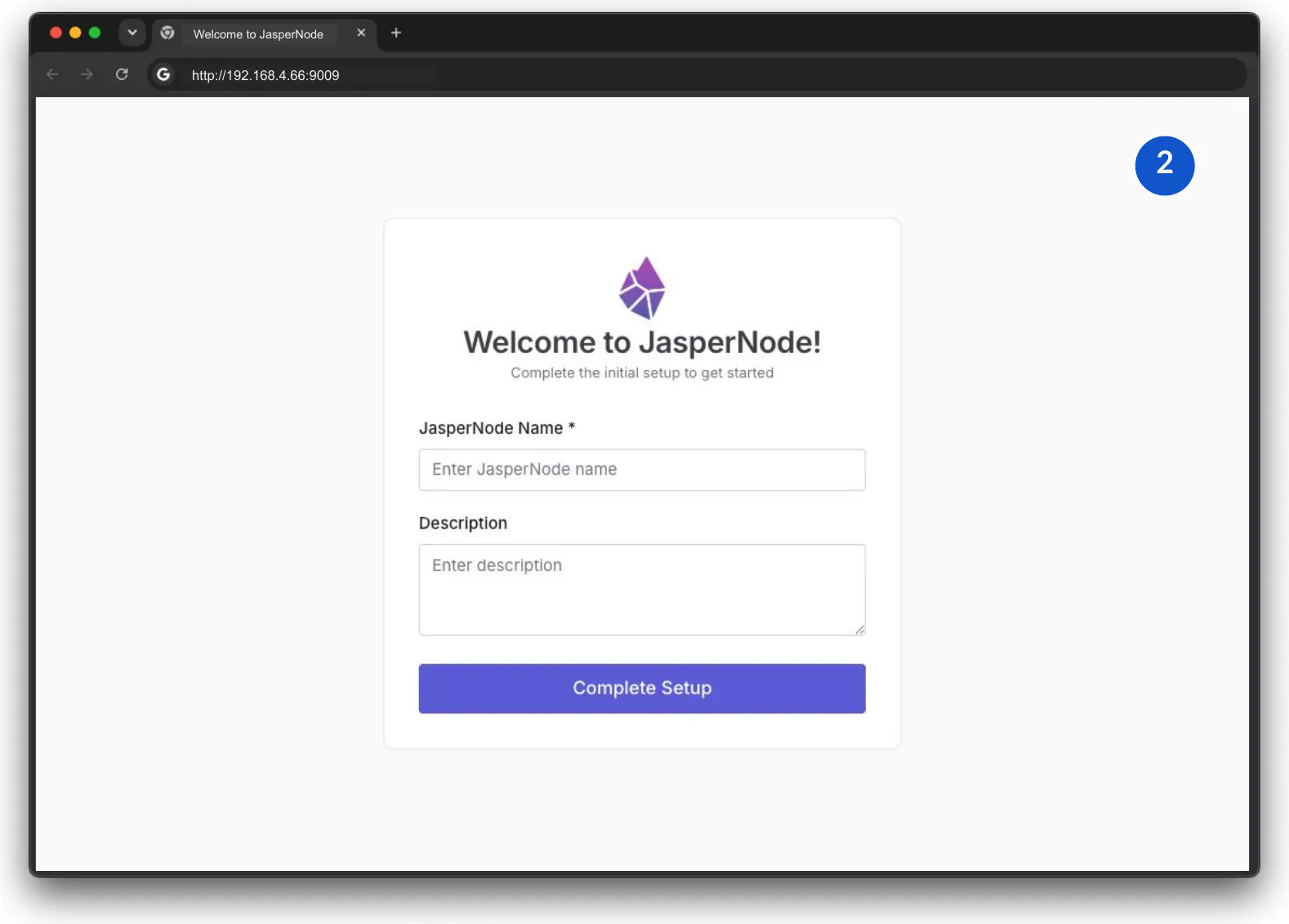

2. 02Give your JasperNode a name and description, then click Complete Setup.

05Step 4 of 4

Start with the AI chat window

Click a figure to enlarge

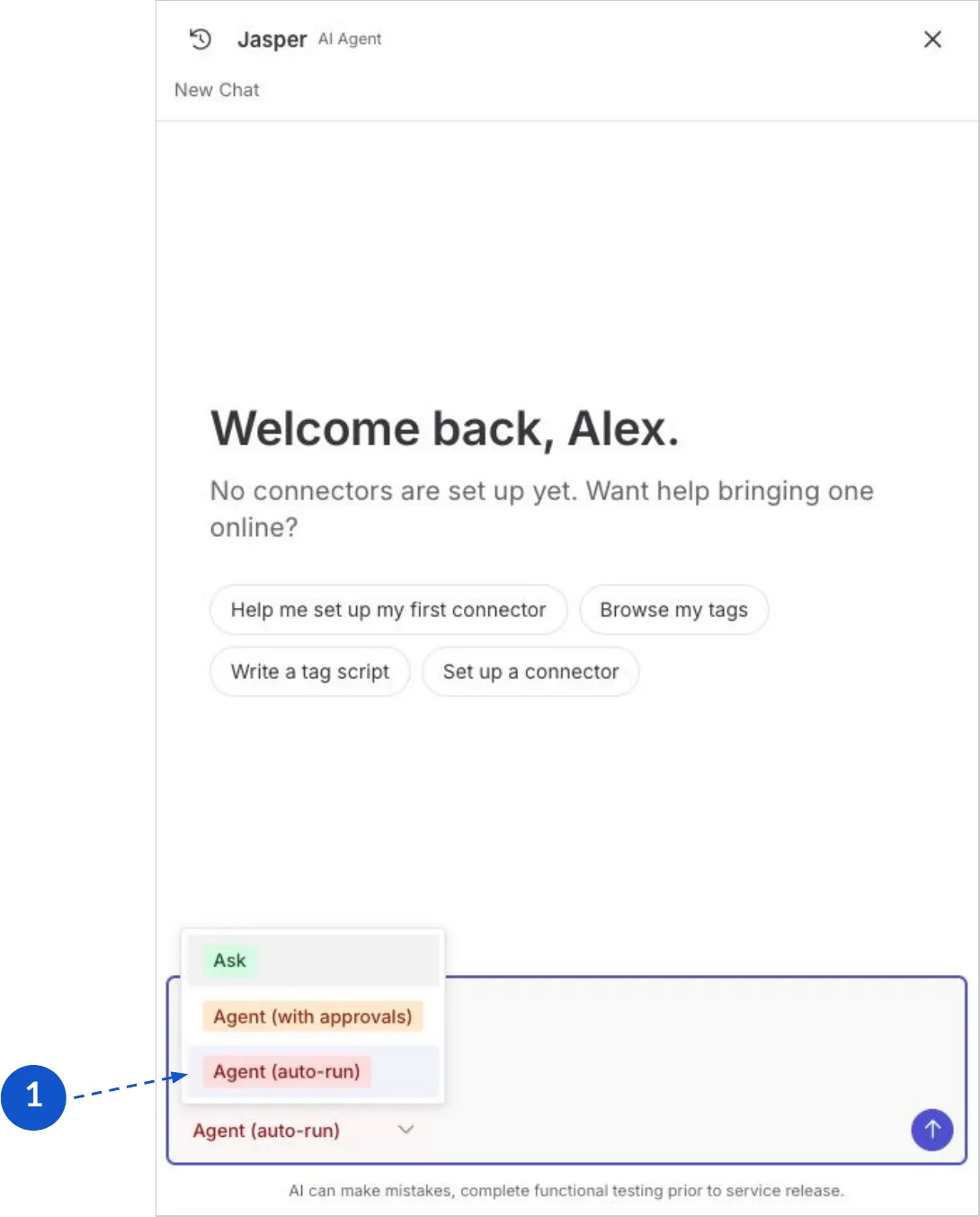

1. 01For the first run, set the agent to Auto-run mode.
2. 02Start with a basic prompt: "Blink output 1 every second".
